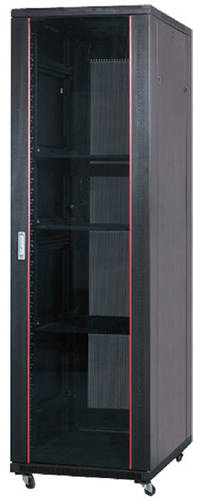

Network Server Cabinet
Features:
- connected by four corner to ensure the stability
- cable entry from the top cover and bottom panel
- removable side doors for easy installation and maintenance
- 4 pcs of M12 adjustable feet and 4 pcs of 2" heavy duty castors included
- 40 sets M6 cage nuts included (below 32U 20 sets)
- 1 pair of vertical cable management included for 800mm depth cabinet
- up to 800 kgs static loading capacity with adjustable feet toughened glass or perforated front door is available upon request, with metallic rear door or perforated door, or perforated front door with dual perforated door
- optional Fan unit (4 fans and 2m single inputt power cord for 800mm depth cabinet and above)
- standard "S" type vertical rail ("L" type vertical rail on request)
Standard:
- Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491.Part1, Part7, DIN4144
Material:
|
· Frame: SPCC cold rolled steel |
· Others: SPCC cold rolles steel |
|
· Thickness: Frame and vertical mounting rail: 2.0mm |
|
|
· Horizontal bracket: 1.5mm, side door: 1.2mm |
· Others:1.2mm |
Nework Server Cabinet
|
Type |
Dimensions (mm) |
Part No. |
||
|
Width |
Depth |
Height |
||
|
27U |
600 |
800 |
1388 |
612x68272 |
|
32U |
600 |
800 |
1610 |
612x68322 |
|
37U |
600 |
800 |
1833 |
612x68372 |
|
42U |
600 |
800 |
2055 |
612x68422 |
|
47U |
600 |
870 |
2277 |
612x68472 |
x=1 stands for perforated metal front door; x=2 stands for glass front door; RAL7035 color upon request
