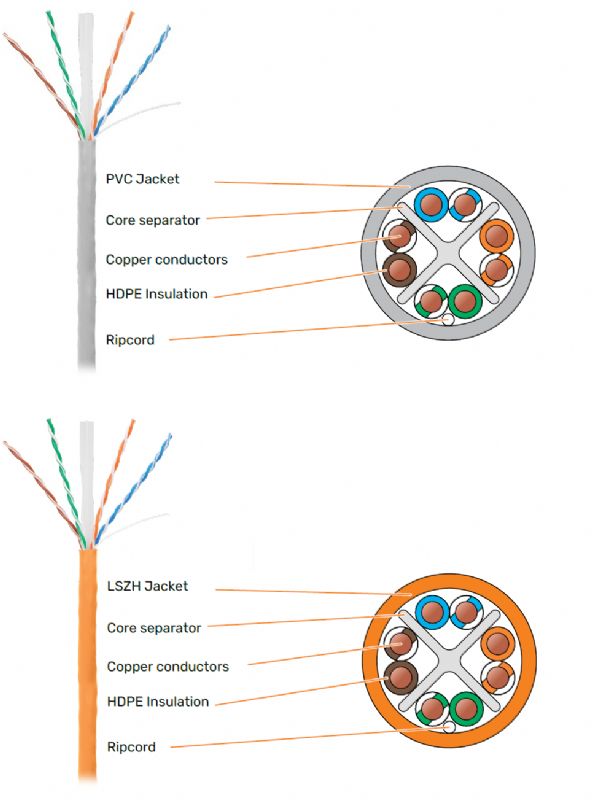

Indoor Cat.6 U/UTP Installation Cable
Cable U/UTP 4 pair 0.505mm, Cat.6, indoor, PVC, solid, grey, 305m Available in ORANGE, LSZH Jacket
EC-UU004-6-PVC-GY / EC-UU004-6-LSZH-OR
Characteristics
| Category | 6 |
| Bandwidth, MHz | 250 |
| Construction | U/UTP |
| Number of twisted pairs | 4 |
| Conductors material | Bare copper |
| Conductors type | Solid |
| Diameter of wire | 0,505±0,005 |
| Conductors insulation material | HDPE |
| Conductors insulation thickness, mm | 0,9±0,02 |
| Conductors insulation outer diameter, mm | 0,92±0,03 |
| Outer jacket material, mm | PVC / LSZH |
| Usage | Indoor |
| Jacket thickness, mm | 0,5±0,05 |
| Jacket outer diameter, мм | 5±0,2 |
| Jacket color | Grey / Orange |
| Protective film | - |
| Separation | Polyester |
| Rip cord | + |
| Mass density per unit lenght, kg/km | 29,3 |
| Bending radius without load, D | ≥8 |
| Bending radius with load, D | ≥4 |
| Tensile strength, H | ≤80 |
| Burst strength, H | ≤400 |
| Impedance, Ом | 100±15 |
| Max. conductor resistance (DC), Ω/km | 93 |
| Standard compliance | Meets the standards requirements: Standard compliance ISO/IEC 11801, EN 50173 and TIA/EIA-568 |
| Application supporters | 10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, 10GBASE-T, ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive |
| Temperature ranges °C | Storage from -20 to +60. Installation from 0 to +50. Exploitation from -20 to +60 |
| Length, m | 305 |
| Package | Individual - cardboard box / transport cardboard box (2 individual boxes) |
| Package sizes (individual/transport), mm | - |
| Warranty | 1 year |
