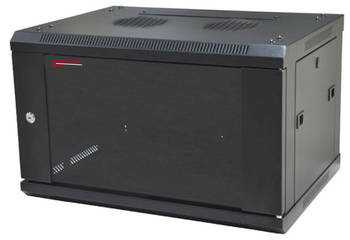

Single Section

Features:

  • Cable entry from top and bottom
  • Top cover ready for cooling fan installation
  • 60 kg static loading capacity
  • Toughened glass front door with over 180° angle



Wall Mount Cabinet (Single Section)

Type Dimensions (mm) Weight (kg) Part No.
Width Depth Height
6U 600 450 370 16 611264062
9U 600 450 500 23 611264092
12U 600 450 635 27 611264122
15U 600 450 770 29 611264152
18U 600 450 905 36 611264182

Other type or black color upon request.

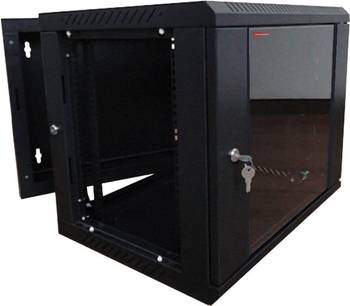

Dual Section

Features:

  • Cable entry from top and bottom
  • Top cover ready for cooling fan installation
  • 60 kg static loading capacity
  • Toughened glass front door with over 180° angle
  • Lockable side door easy to open for installation
  • Fixed 100mm back section space



Wall Mount Cabinet (Dual Section)

Type Dimensions (mm) Weight (kg) Part No.
Width Depth Height
6U 600 450 + 100 370 19 614264062
9U 600 450 + 100 500 25 614264092
12U 600 450 + 100 635 30 614264122
15U 600 450 + 100 770 32 614264152
18U 800 450 + 100 905 38 614264182

Other type or RAL 7035 color upon request.
