Aisle Containment System

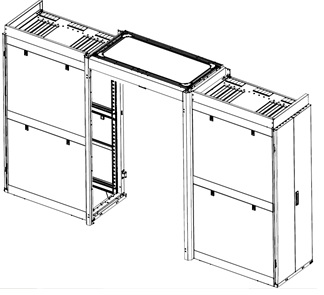

  • The Aisle Containment System is a modular row-based thermal containment solution, which separates cold and hot datacenter air streams to and from equipment. It manages airflow at the source, Increases the cooling efficiency and significantly.
  • Row level thermal containment improves cooling efficiency and predictability to address zones and complete data center deployments.
  • Most parts of the aisle containment components are designed by modular, which allows quick deployment on site and address changing needs or future expansion with pay-as-you grow architecture.
  • The aisle containment is adaptable for enhanced network server cabinet (61586xyy2 or 61588xyy2)
  • Provide the right combination of safety and security, dual mechanical doors or sliding doors are available options.
  • Designed and built to provide high level security solutions for computer rooms, server rooms, and co-location data centers.

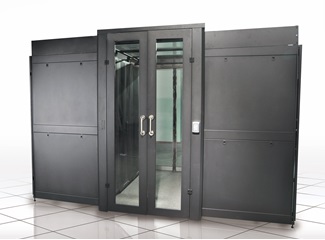

Dual Door

619291002 47.2"(1200mm)W x 86.6"(2200mm)H Dual Mechanical doors,
Material: 4mm Toughened glass
619191002 47.2"(1200mm)W x 86.6"(2200mm)H Dual Sliding doors,
Material: 4mm Toughened glass

Note: Other sizes are available based on aisle width



619360002 600(W ) fixed top roof    Material:4mm Toughened glass
619380002 800(W ) fixed top roof    Material:4mm Toughened glass
