Category 6A S/FTP 600MHz
Standards:
- ISO/IEC 2nd Edition Amendment 1.2
- CENELEC EN 50288-10-1
- ISO/IEC 61156-5 2nd Edition
- ANSI/TIA-568-C.2
- IEC 60332-1
- IEC 60754-2
- UL listed
- RoHS compliant
Application:
- 10G BASE-T Ethernet
- 1000BASE-TX (Gigabit Ethernet)
- 1000BASE-T (Gigabit Ethernet)
- 100BASE-TX Fast Ethernet
- 10BASE-T Ethernet
- Voice
Construction
|
Conductor |
Material / size |
Bare Copper / 23 AWG |
|
Insulation |
Material |
Foam-Skin PE |
|
Inner-Shield |
Aluminum-Mylar |
An Aluminum Foil Screen Around Each Pair |
|
Braid |
Material |
Tinned Copper |
|
Sheath |
Material |
LSOH |
|
Diameter |
7.4± 0.3 mm |
Mechanical & Environmental Characteristics
|
Bending Radius |
≥ 6D, without load |
|
≥ 8D, with load |
|
|
Operation Temperature |
-20 °C ~+60°C |
|
Installation Temperature |
0°C ~+50°C |
|
Storage Temperature |
-30 °C ~+60°C |
Electrical Performance
|
Freq |
Insertion Loss |
NEXT |
PS NEXT |
ACR-F |
PS ACR-F |
Return Loss |
||||||
|
(MHz) |
(dB) |
(dB/100m) |
(dB) |
(dB) |
(dB) |
(dB) |
||||||
|
|
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
|
1.0 |
2.1 |
1.7 |
74.3 |
100.0 |
72.3 |
97.0 |
67.8 |
90.0 |
64.8 |
87.0 |
20.0 |
30.0 |
|
4.0 |
3.8 |
3.4 |
65.3 |
100.0 |
63.3 |
97.0 |
55.8 |
90.0 |
52.8 |
87.0 |
23.0 |
33.0 |
|
10.0 |
5.9 |
5.0 |
59.3 |
100.0 |
57.3 |
97.0 |
47.8 |
90.0 |
44.8 |
87.0 |
25.0 |
35.0 |
|
16.0 |
7.5 |
6.4 |
56.2 |
100.0 |
54.2 |
97.0 |
43.7 |
90.0 |
40.7 |
87.0 |
25.0 |
35.0 |
|
20.0 |
8.4 |
7.1 |
54.8 |
100.0 |
52.8 |
97.0 |
41.8 |
90.0 |
38.8 |
87.0 |
25.0 |
35.0 |
|
31.25 |
10.5 |
9.0 |
51.9 |
100.0 |
49.9 |
97.0 |
37.9 |
90.0 |
34.9 |
87.0 |
23.6 |
33.6 |
|
62.5 |
15.0 |
13.0 |
47.4 |
100.0 |
45.4 |
97.0 |
31.9 |
85.0 |
28.9 |
82.0 |
21.5 |
31.5 |
|
100.0 |
19.1 |
16.8 |
44.3 |
98.0 |
42.3 |
95.0 |
27.8 |
81.0 |
24.8 |
78.0 |
20.1 |
30.1 |
|
200.0 |
27.6 |
23.9 |
39.8 |
93.0 |
37.8 |
90.0 |
21.8 |
77.0 |
18.8 |
74.0 |
18.0 |
28.0 |
|
250.0 |
31.1 |
28.5 |
38.3 |
92.1 |
36.3 |
89.1 |
19.8 |
76.0 |
16.8 |
73.0 |
17.3 |
27.3 |
|
300.0 |
34.3 |
29.2 |
37.1 |
91.0 |
35.1 |
88.0 |
18.3 |
71.0 |
15.3 |
68.0 |
16.8 |
27.3 |
|
400.0 |
40.1 |
33.4 |
35.3 |
89.1 |
33.3 |
86.1 |
15.8 |
68.1 |
12.8 |
65.1 |
15.9 |
27.3 |
|
550.0 |
47.6 |
37.2 |
33.2 |
87.3 |
31.2 |
84.3 |
13.0 |
33.2 |
10.0 |
63.1 |
14.9 |
27.3 |
|
600.0 |
50.0 |
42.5 |
32.7 |
86.1 |
30.7 |
83.1 |
12.3 |
60.0 |
9.3 |
57.0 |
14.6 |
27.3 |
Category 6A S/FTP 600MHz
|
PART NO. |
DESCRIPTION |
PACKING SIZE |
|
209442225 |
Premium Line Category 6A S/FTP installation cable, LSOH, Grey |
45(O.D)×29.8(H) cm |
Category 6A U/FTP 600MHz
Standards:
- ISO/IEC 11801 CLASS ES
- CENELEC EN 50288-10-1
- IEC 61156-5 2nd Edition
- ANSI/TIA-568-C.2
- IEC 60332-1
- IEC 60754-2
- ETL Verifed
- RoHS compliant
Application:
- 10G BASE-T Ethernet
- 1000BASE-TX (Gigabit Ethernet)
- 1000BASE-T (Gigabit Ethernet)
- 100BASE-TX Fast Ethernet
- 10BASE-T Ethernet
- Voice

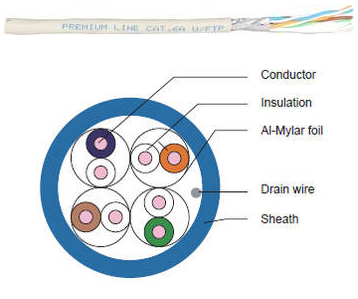

Construction
|
Conductor |
Material / size |
Bare Copper / 23 AWG |
|
Insulation |
Material |
Foam-Skin PE |
|
Inner-Shield |
Aluminum-Mylar |
An Aluminum Foil Screen Around Each Pair |
|
Sheath |
Material |
LSOH |
|
Diameter |
7.4± 0.3 mm |
Mechanical & Environmental Characteristics
|
Bending Radius |
≥ 6D, without load |
|
≥ 8D, with load |
|
|
Operation Temperature |
-20 °C ~+60°C |
|
Installation Temperature |
0°C ~+50°C |
|
Storage Temperature |
-30 °C ~+60°C |
Electrical Performance
|
Freq |
Insertion Loss |
NEXT |
PS NEXT |
ACR-F |
PS ACR-F |
Return Loss |
||||||
|
(MHz) |
(dB) |
(dB/100m) |
(dB) |
(dB) |
(dB) |
(dB) |
||||||
|
|
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
|
1.0 |
2.1 |
1.7 |
74.3 |
100.0 |
72.3 |
97.0 |
67.8 |
90.0 |
64.8 |
87.0 |
20.0 |
30.0 |
|
4.0 |
3.8 |
3.4 |
65.3 |
100.0 |
63.3 |
97.0 |
55.8 |
90.0 |
52.8 |
87.0 |
23.0 |
33.0 |
|
10.0 |
5.9 |
5.0 |
59.3 |
100.0 |
57.3 |
97.0 |
47.8 |
90.0 |
44.8 |
87.0 |
25.0 |
35.0 |
|
16.0 |
7.5 |
6.4 |
56.2 |
100.0 |
54.2 |
97.0 |
43.7 |
90.0 |
40.7 |
87.0 |
25.0 |
35.0 |
|
20.0 |
8.4 |
7.1 |
54.8 |
100.0 |
52.8 |
97.0 |
41.8 |
90.0 |
38.8 |
87.0 |
25.0 |
35.0 |
|
31.25 |
10.5 |
9.0 |
51.9 |
100.0 |
49.9 |
97.0 |
37.9 |
90.0 |
34.9 |
87.0 |
23.6 |
33.6 |
|
62.5 |
15.0 |
13.0 |
47.4 |
100.0 |
45.4 |
97.0 |
31.9 |
85.0 |
28.9 |
82.0 |
21.5 |
31.5 |
|
100.0 |
19.1 |
16.8 |
44.3 |
98.0 |
42.3 |
95.0 |
27.8 |
81.0 |
24.8 |
78.0 |
20.1 |
30.1 |
|
200.0 |
27.6 |
23.9 |
39.8 |
93.0 |
37.8 |
90.0 |
21.8 |
77.0 |
18.8 |
74.0 |
18.0 |
28.0 |
|
250.0 |
31.1 |
28.5 |
38.3 |
92.1 |
36.3 |
89.1 |
19.8 |
76.0 |
16.8 |
73.0 |
17.3 |
27.3 |
|
300.0 |
34.3 |
29.2 |
37.1 |
91.0 |
35.1 |
88.0 |
18.3 |
71.0 |
15.3 |
68.0 |
16.8 |
27.3 |
|
400.0 |
40.1 |
33.4 |
35.3 |
89.1 |
33.3 |
86.1 |
15.8 |
68.1 |
12.8 |
65.1 |
15.9 |
27.3 |
|
550.0 |
47.6 |
37.2 |
33.2 |
87.3 |
31.2 |
84.3 |
13.0 |
33.2 |
10.0 |
63.1 |
14.9 |
27.3 |
|
600.0 |
50.0 |
42.5 |
32.7 |
86.1 |
30.7 |
83.1 |
12.3 |
60.0 |
9.3 |
57.0 |
14.6 |
27.3 |
Category 6A S/FTP 600MHz
|
PART NO. |
DESCRIPTION |
PACKING SIZE |
|
209642225 |
Premium Line Category 6A U/FTP Installation Cable, 500m reel, LSOH, 600 MHz |
45(O.D)×29.8(H) cm |

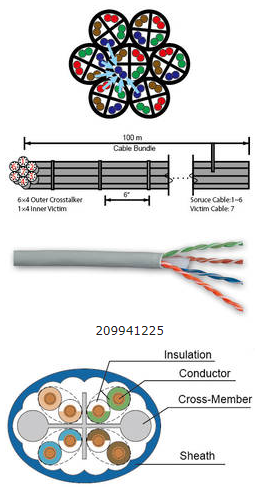

Category 6A U/UTP 500MHz 6 Round 1
ETL Certified 6 Round 1 Alien Near End Crosstalk Compliant Cable
During full network operation, all wire pairs in a cabling bundle simultaneously transmit in full duplex. Therefore, every single wire pair will be affected by transmissions on numerous wire pairs surrounding it in a cabling bundle or pathway.
AxTalk is a challenge for twisted-pair cabling as it is the most significant disturbance or noise source for the 10 Gb E applications.
Premium Line Cat. 6A 6 round 1 cable is right design to fulfill this requirement.
Standards:
- NSI/TIA-568-C.2
- ISO/IEC 2ndEdition 11801 Class EA
- CENELEC EN 50288-10-1
- ISO/IEC 61156-5 2ndEdition
- ETL certified ANSI/TIA/EIA-568-B.2-10 Category 6A tested PSANEXT & PSAACR-F
- RoHS compliant
Application:
- 10G BASE-T Ethernet
- 1000BASE-TX (Gigabit Ethernet)
- 1000BASE-T (Gigabit Ethernet)
- 100BASE-TX Fast Ethernet
- 10BASE-T Ethernet
- Voice
Construction
|
Conductor |
Material / size |
Bare Copper / 23 AWG |
|
Insulation |
Material |
HDPE |
|
Cross-Member |
Material |
PE |
|
Sheath |
Material |
PVC/LSOH |
|
Diameter |
10.5± 0.3 mm |
Mechanical & Environmental Characteristics
|
Bending Radius |
≥ 6D, without load |
|
≥ 8D, with load |
|
|
Operation Temperature |
-20 °C ~+60°C |
|
Installation Temperature |
0°C ~+50°C |
|
Storage Temperature |
-30 °C ~+60°C |
Electrical Performance
|
Freq |
Insertion |
NEXT |
PS NEXT |
PSA NEXT |
ACR-F |
PS ACR-F |
PSA ACR-F |
Return Loss |
||||||||
|
(MHz) |
(dB) |
(dB/100m) |
(dB) |
(dB) |
(dB) |
(dB) |
(dB) |
(dB) |
||||||||
|
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
|
|
1.0 |
2.1 |
1.7 |
74.3 |
102.0 |
72.3 |
100.0 |
67.0 |
92.7 |
67.8 |
99.8 |
64.8 |
91.5 |
67.0 |
90.9 |
20.0 |
26.5 |
|
4.0 |
3.8 |
3.3 |
65.3 |
95.0 |
63.3 |
94.2 |
67.0 |
95.3 |
55.7 |
94.0 |
52.7 |
80.7 |
66.2 |
93.9 |
23.0 |
36.0 |
|
10.0 |
5.9 |
5.3 |
59.3 |
93.0 |
57.3 |
92.9 |
67.0 |
99.7 |
47.8 |
87.8 |
44.8 |
72.6 |
58.2 |
86.6 |
25.0 |
43.0 |
|
16.0 |
7.5 |
6.8 |
56.2 |
90.0 |
54.2 |
90.5 |
67.0 |
100.1 |
43.7 |
79.8 |
40.7 |
68.4 |
54.1 |
80.5 |
25.0 |
49.0 |
|
20.0 |
8.4 |
7.6 |
54.8 |
87.0 |
52.8 |
87.1 |
67.0 |
98.3 |
41.7 |
76.9 |
38.7 |
66.4 |
52.2 |
78.2 |
25.0 |
52.0 |
|
31.25 |
10.5 |
9.5 |
51.9 |
84.0 |
49.9 |
84.5 |
67.0 |
98.4 |
37.9 |
73.1 |
34.9 |
62.9 |
48.3 |
74.4 |
23.6 |
48.0 |
|
62.5 |
15.0 |
13.7 |
47.4 |
82.0 |
45.4 |
82.3 |
65.6 |
99.4 |
31.8 |
68.3 |
28.8 |
56.3 |
42.3 |
68.8 |
21.5 |
48.0 |
|
100.0 |
19.1 |
17.5 |
44.3 |
77.0 |
42.3 |
77.9 |
62.5 |
94.7 |
27.8 |
63.1 |
24.8 |
51.8 |
38.2 |
63.9 |
20.1 |
45.0 |
|
200.0 |
27.6 |
25.1 |
39.8 |
74.0 |
37.8 |
74.2 |
58.0 |
91.3 |
21.7 |
50.3 |
18.7 |
46.9 |
32.2 |
55.1 |
18.0 |
43.0 |
|
250.0 |
31.1 |
28.1 |
38.3 |
72.0 |
36.3 |
72.3 |
56.5 |
89.4 |
19.8 |
50.7 |
16.8 |
44.2 |
30.2 |
53.9 |
17.3 |
37.0 |
|
300.0 |
34.3 |
30.9 |
37.1 |
70.0 |
35.1 |
69.3 |
55.3 |
56.9 |
18.2 |
49.2 |
15.2 |
42.1 |
28.7 |
52.2 |
16.8 |
34.0 |
|
400.0 |
40.1 |
36.1 |
35.3 |
68.0 |
33.3 |
68.1 |
53.5 |
85.3 |
15.7 |
44.2 |
12.7 |
41.3 |
26.2 |
49.3 |
15.9 |
34.0 |
|
500.0 |
45.3 |
40.5 |
33.8 |
66.0 |
31.8 |
65.9 |
52.0 |
83.2 |
13.8 |
41.3 |
10.8 |
39.5 |
24.2 |
46.8 |
15.2 |
34.0 |
Category 6A U/UTP Installation Cable
|
PART NO. |
DESCRIPTION |
PACKING SIZE |
|
209941225 |
Premium Line Category 6A U/UTP Installation Cable, 500 m reel, PVC, 500 MHz |
45(O.D)×29.8(H) cm |
|
209942225 |
Premium Line Category 6A U/UTP Installation Cable, 500 m reel, LSOH, 500 MHz |
45(O.D)×29.8(H) cm |
Category 6A U/UTP 500MHz
Standards:
- NSI/TIA-568-C.2
- ISO/IEC 2nd Edition 11801 Class EA
- CENELEC EN 50288-10-1
- ISO/IEC 61156-5 2nd Edition
- ETL certified ANSI/TIA/EIA-568-B.2-10 Category 6A (not tested PSANEXT & PSAACR-F)
- RoHS compliant
Application:
- 10G BASE-T Ethernet
- 1000BASE-TX (Gigabit Ethernet)
- 1000BASE-T (Gigabit Ethernet)
- 100BASE-TX Fast Ethernet
- 10BASE-T Ethernet
- Voice
Construction
|
Conductor |
Material / size |
Bare Copper / 23 AWG |
|
Insulation |
Material |
HDPE |
|
"+" Cross-Member |
Material |
PE |
|
Sheath |
Material |
PVC/LSOH |
|
Diameter |
7.5± 0.3 mm |
Mechanical & Environmental Characteristics
|
Bending Radius |
≥ 6D, without load |
|
≥ 8D, with load |
|
|
Operation Temperature |
-20 °C ~+60°C |
|
Installation Temperature |
0°C ~+50°C |
|
Storage Temperature |
-30 °C ~+60°C |
Electrical Performance
|
Freq |
Insertion Loss |
NEXT |
PS NEXT |
ACR-F |
PS ACR-F |
Return Loss |
||||||
|
(MHz) |
(dB) |
(dB/100m) |
(dB) |
(dB) |
(dB) |
(dB) |
||||||
|
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
Nor. |
Typ. |
|
|
1.0 |
2.1 |
1.7 |
74.3 |
102.0 |
72.3 |
100.0 |
67.8 |
99.8 |
64.8 |
91.5 |
20.0 |
26.5 |
|
4.0 |
3.8 |
3.3 |
65.3 |
95.0 |
63.3 |
94.2 |
55.7 |
94.0 |
52.7 |
80.7 |
23.0 |
36.0 |
|
10.0 |
5.9 |
5.3 |
59.3 |
93.0 |
57.3 |
92.9 |
47.8 |
87.8 |
44.8 |
72.6 |
25.0 |
43.0 |
|
16.0 |
7.5 |
6.8 |
56.2 |
90.0 |
54.2 |
90.5 |
43.7 |
79.8 |
40.7 |
68.4 |
25.0 |
49.0 |
|
20.0 |
8.4 |
7.6 |
54.8 |
87.0 |
52.8 |
87.1 |
41.7 |
76.9 |
38.7 |
66.4 |
25.0 |
52.0 |
|
31.25 |
10.5 |
9.5 |
51.9 |
84.0 |
49.9 |
84.5 |
37.9 |
73.1 |
34.9 |
62.9 |
23.6 |
48.0 |
|
62.5 |
15.0 |
13.7 |
47.4 |
82.0 |
45.4 |
82.3 |
31.8 |
68.3 |
28.8 |
56.3 |
21.5 |
48.0 |
|
100.0 |
19.1 |
17.5 |
44.3 |
77.0 |
42.3 |
77.9 |
27.8 |
63.1 |
24.8 |
51.8 |
20.1 |
45.0 |
|
200.0 |
27.6 |
25.1 |
39.8 |
74.0 |
37.8 |
74.2 |
21.7 |
50.3 |
18.7 |
46.9 |
18.0 |
43.0 |
|
250.0 |
31.1 |
28.1 |
38.3 |
72.0 |
36.3 |
72.3 |
19.8 |
50.7 |
16.8 |
44.2 |
17.3 |
37.0 |
|
300.0 |
34.3 |
30.9 |
37.1 |
70.0 |
35.1 |
69.3 |
18.2 |
49.2 |
15.2 |
42.1 |
16.8 |
34.0 |
|
400.0 |
40.1 |
36.1 |
35.3 |
68.0 |
33.3 |
68.1 |
15.7 |
44.2 |
12.7 |
41.3 |
15.9 |
34.0 |
|
500.0 |
45.3 |
40.5 |
33.8 |
66.0 |
31.8 |
65.9 |
13.8 |
41.3 |
10.8 |
39.5 |
15.2 |
34.0 |
Category 6A U/UTP Installation Cable
|
PART NO. |
DESCRIPTION |
PACKING SIZE |
|
209141225 |
Premium Line Category 6A U/UTP Installation Cable, 500 m reel, PVC, 500 MHz |
50(O.D)×34(H) cm |
|
209142225 |
Premium Line Category 6A U/UTP Installation Cable, 500 m reel, LSOH, 500 MHz |
50(O.D)×34(H) cm |
