Our Products
Comprehensive solution provider for the network infrastructure.
Power Distribution Unit (PDU)
Power Distribution Unit
| PART NO. | DESCRIPTION |
| 631210812 | Power Distribution Unit with Aluminium Body, European Type, 8 Outlets |
| 631210822 | Power Distribution Unit with Non-metallic Body, European Type, 8 Outlets |
| 632220612 | Power Distribution Unit with Aluminium Body, UK Type, 6 Outlets |
| 632220622 | Power Distribution Unit with Non-metallic Body, UK Type, 6 Outlets |
| 633230812 | Power Distribution Unit with Aluminium Body, UL Type, 8 Outlets |
| 633230822 | Power Distribution Unit with Non-metallic Body, UL Type, 8 Outlets |
| 631710612 | Power Distribution Unit with Aluminium Body, European Type ,6 Outlets with Surge Protector |
| 631810712 | Power Distribution Unit with Aluminium Body, European Type ,7 Outlets with Surge Protector, without LED Switch |
| 632720612 | Power Distribution Unit with Aluminum Body, UK Type, 6 Outlets with Surge Protector |
| 632810612 | Power Distribution Unit with Aluminum Body, UK Type, 6 Outlets with Surge Protector, without LED Switch |
| 633730712 | Power Distribution Unit with Aluminum Body, UL Type, 7 Outlets with Surge Protector |
| 633830712 | Power Distribution Unit with Aluminum Body, UL Type, 7 Outlets with Surge Protector, without LED Switch |

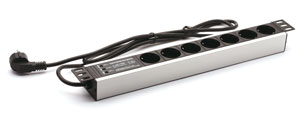

European Type
Features:
- Conform to DIN49440 and DIN49441
- Maximum 16A 250V AC current capacity, 3.5 kW
- Lighted master switch
- Standard 1U 8 output and 1.5U 6 output with surge protect
- 2 m power cord, other length upon request
- Color: aluminum or plastic frame in black
- RoHS compliant
American Type
Features:
- IEC60906 two-pole socket-outlets with grounding contact
- Maximum 10A 110V AC current capacity, 2.5 kW
- Lighted master switch
- Standard 1U 8 output and 1.5U 7 output with surge protect
- 2 m power cord, other length upon request
- Color: aluminum or plastic frame in black
- RoHS compliant

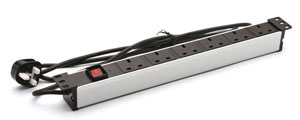

UK Type
Features:
- BS1363 standard UK socket and plug
- Maximum 13A 230V AC current capacity, 3 kW
- Lighted master switch
- Standard 1U 6 output and 1.5U 6 output with surge protect
- 2 m power cord, other length upon request
- Color: aluminum or plastic frame in black
- RoHS compliant
Power Distribution Unit Surge - Protector Type
Features:
- Available in European, UK & UL types
- Standard 1.5U mounting size,aluminum frame
- Dimension: 482.6 × 66.67 × 62 mm
- Optional lighted master switch
- 2 m power cord, other length upon request
- Other type PDU upon request
- RoHS compliant
