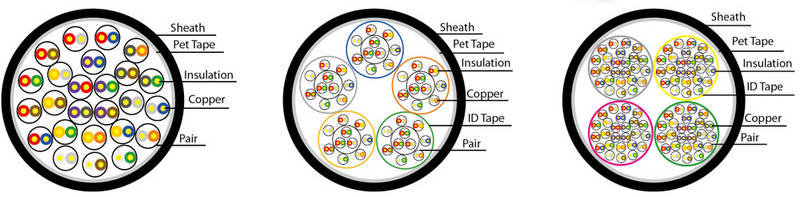

Category 5 U/UTP Indoor Multipair Cable
Construction
|
Conductor |
24 AWG Soft Plain Copper |
||||
|
Insulation |
Polyethylene with color marking on Primary cores to ease identification |
||||
|
Sheath |
PVC |
||||
|
5 Pairs |
25 Pairs |
50 Pairs |
100 Pairs |
||
|
5.7±0.3mm |
11.5+/-1.0mm |
15.0+/-2.0mm |
25.0+/-2.0mm |
||
Electrical Performance
|
Transmission Frequency (MHz) |
1 |
4 |
8 |
10 |
16 |
|
NEXT dB/100m |
41.3 |
32.3 |
27.8 |
26.3 |
23.3 |
|
Characteristic Impedance |
100 +/- 15 |
||||
|
Attenuation dB/100m |
2.6 |
5.6 |
8.5 |
9.7 |
13.1 |
|
Structural Return Loss dB/100m |
12 |
12 |
12 |
12 |
9.95 |
|
Nominal Velocity of Propagation |
>65% |
||||
Mechanical & Environmental Characteristics
|
Bending Radius |
≥ 6D, without load |
|
≥ 15D, with load |
|
|
Operation Temperature |
-20 °C ~+60°C |
|
Installation Temperature |
0°C ~+50°C |
|
Storage Temperature |
-30 °C ~+60°C |
Category 3 U/UTP Indoor Multipair Cable
|
PART NO. |
DESCRIPTION |
|
203161225 |
Premium Line Category 3 U/UTP Multipair Cable, 5 pairs, 500 m reels, PVC |
|
203181225 |
Premium Line Category 3 U/UTP Multipair Cable, 25 pairs, 500 m reels, PVC |
|
203191225 |
Premium Line Category 3 U/UTP Multipair Cable, 50 pairs, 500 m reels, PVC |
|
203111225 |
Premium Line Category 3 U/UTP Multipair Cable, 100 pairs, 500 m reels, PVC |
Category 5 U/UTP Indoor Multipair Cable
|
PART NO. |
DESCRIPTION |
|
201181225 |
Premium Line Category 5 U/UTP Multipair Cable, 25 pairs, 500 m reels, PVC |
|
201191225 |
Premium Line Category 5 U/UTP Multipair Cable, 50 pairs, 500 m reels, PVC |

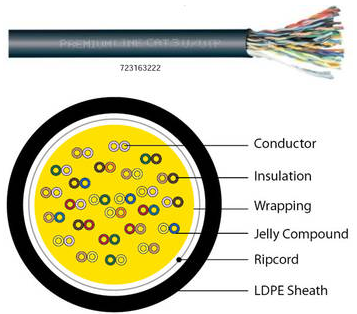

Category 3 U/UTP Outdoor Gel Filled Multipair cable
Mechanical & Environmental Characteristics
|
Bending Radius |
≥ 10D, without load |
|
≥ 15D, with load |
|
|
Operation Temperature |
-40 °C ~+60°C |
|
Installation Temperature |
-10°C ~+50°C |
|
Storage Temperature |
-50 °C ~+70°C |
Construction
|
Conductor |
0.50±0.005MM Plain copper conductor |
|||
|
Insulation |
HDPE with color marking on Primary cores to ease identification |
|||
|
Filling Compound |
Petroleum Jelly Filled Compound |
|||
|
Sheath |
LDPE |
|||
|
Nominal size |
25 Pair |
50 Pair |
100 Pair |
|
|
13.8 |
18.2 |
23.5 |
||
|
Additional Components |
Overall Cable wrapped with PP tape |
|||
Category 3 U/UTP Outdoor Gel Filled Multipair Cable
|
PART NO. |
DESCRIPTION |
|
723163222 |
Premium Line Category 3 U/UTP Multipair Cable, 25 pairs, Outdoor Gel Filled, 500 m reels, PE |
|
723183222 |
Premium Line Category 3 U/UTP Multipair Cable, 50 pairs, Outdoor Gel Filled, 500 m reels, PE |
