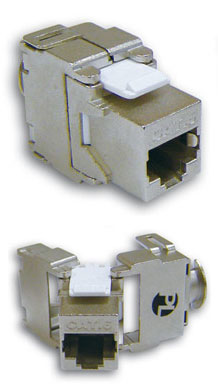

180° Shielded Die-Casting Keystone Jack
Premium Line 180° shielded Die-casting Keystone Jack in special design for optimal EMI protection. Toolless design, no additional tools for termination needed, supports T568 A&B wiring. The finished product complies with EU RoHS directive.
Physical Characteristics
|
Body Material |
Housing: PC, UL94 V-0 |
|
Body: zinc die-casting |
|
|
Jack Contact |
phosphor bronze, 50μ inch gold plated over nickel |
|
IDC Contacts |
100μ inch nickel plated over phosphor bronze |
Electrical Characteristics
|
Dielectric Strength |
1000V RMS for 1min |
|
Current Rating |
1.5Amp Max. |
|
Insulation Resistance |
10MΩ Min. |
|
Contact Resistance |
2mΩ per contact |
|
Temperature Range |
-10°C to 60°C |
|
Humidity |
10%~90%; non condensing |
Applications
- 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet.
- 10BASE-T Ethernet.
- Voice, Video and other applications.
All the products are verified to the electrical characteristics required in the directive.
Category 5e 180° Shielded Die-Casting Keystone Jack
|
PART NO. |
DESCRIPTION |
PACKING SIZE |
|
105524010 |
Premium Line Category 5e 180° Shielded Die-Casting Keystone Jack |
53.8×35.2×27 cm |
|
170252402 |
Premium Line High Density Shielded Unloaded Patch Panel with Integrated Bar |
50.5×27.9×27 cm |
90° Shielded Keystone Jack
All the products are verified to the electrical characteristics required in the directive.
Category 5e 90° Shielded Keystone Jack
|
PART NO. |
DESCRIPTION |
PACKING SIZE |
|
105211010 |
Premium Line Category 5e 90° Shielded Keystone Jack, Dual Type IDC |
53.8×35.2×27 cm |
90° Unshielded Keystone Jack
Premium Line 90° unshielded keystone jack is in classical design, the dual type IDC accepts 22-26 AWG solid cables, easy terminated with 110 or Krone tools, supports T568 A&B wiring.
The finished product complies with EU RoHS directive. With its good & stable performance, this module earns the good sales result in the market.
All the products are verified the electrical characteristics required in the directive.
Physical Characteristics
|
Housing |
PC, UL94 V-0 |
|
Jack Contact |
phosphor bronze, 50μ inch goldplated over nickel |
|
IDC Contacts |
100μ inch nickel plated over phosphor bronze |
|
IDC Contacts |
100μ inch nickel plated over phosphor bronze |
Electrical Characteristics
|
Dielectric Strength |
1000V RMS for 1min |
|
Current Rating |
1.5Amp Max. |
|
Insulation Resistance |
10MΩ Min. |
|
Contact Resistance |
2mΩ per contact |
|
Temperature Range |
-10°C to 60°C |
|
Humidity |
10%~90%; non condensing |
Applications
- 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet.
- 10BASE-T Ethernet.
- Voice, Video and other applications.
All the products are verified to the electrical characteristics required in the directive.
Category 5e 90° Unshielded Keystone Jack
|
PART NO. |
DESCRIPTION |
PACKING SIZE |
|
105111010 |
Premium Line Category 5e 90° Unshielded Keystone Jack, Dual Type IDC, White |
53.8×35.2×27 cm |
Category 5e 90° Unshielded slim Keystone Jack
|
PART NO. |
DESCRIPTION |
PACKING SIZE |
|
105311010 |
Premium Line Category 5e 90° Unshielded Slim Keystone Jack, Dual Type IDC, White |
53.8×35.2×27 cm |
180° Unshielded Keystone Jack
Premium Line 180° unshielded keystone jack is in classical design, the dual type IDC accepts 22-26 AWG solid cables, easy terminated with 110 or Krone tools, supports T568 A&B wiring.
The finished product complies with EU RoHS directive. With its good & stable performance, this module earns the good sales result in the market. All the products are verified to the electrical characteristics required in the directive.
Physical Characteristics
|
Housing |
PC, UL94 V-0 |
|
Jack Contact |
phosphor bronze, 50μ inch goldplated over nickel |
|
IDC Contacts |
100μ inch nickel plated over phosphor bronze |
Electrical Characteristics
|
Dielectric Strength |
1000V RMS for 1min |
|
Current Rating |
1.5Amp Max. |
|
Insulation Resistance |
10MΩ Min. |
|
Contact Resistance |
2mΩ per contact |
|
Temperature Range |
-10°C to 60°C |
|
Humidity |
10%~90%; non condensing |
Applications
- 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet.
- 10BASE-T Ethernet.
- Voice, Video and other applications.
All the products are verified to the electrical characteristics required in the directive.
Category 5e 180° Unshielded Keystone Jack
|
PART NO. |
DESCRIPTION |
PACKING SIZE |
|
105121010 |
Premium Line Category 5e 180° Unshielded Keystone Jack, Dual Type IDC, White |
53.8×35.2×27 cm |
|
171022402 |
Premium Line 24port High Density Unloaded Patch Panel for Unshielded Keystone Jacks, Black |
53.8×35.2×27 cm |
