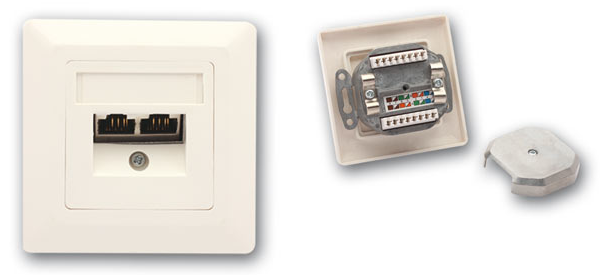

Shielded Compact Outlet
Premium Line compact outlet is in dedicated design for European market.
With the high electrical performance also the high quality physical material used for inner construction and outside appearance, it provides both easy and reliable field installation also real long time application. And in finished size 80×80mm.
Physical Characteristics
|
Plate |
ABS, UL94 V-0 |
|
Top & Bottom Case |
Zinc die casting alloys |
|
Jack |
Shielded: bronze with nickel plated |
|
Plastic housing: engineering thermoplastic |
|
|
IDC |
Main body: PC, UL94 V-0 |
|
IDC Contacts:100μ inch nickel plated over phosphor bronze |
Electrical Characteristics
|
Dielectric Strength |
1000V RMS for 1min |
|
Current Rating |
1.5Amp Max. |
|
Insulation Resistance |
10MΩ Min. |
|
Contact Resistance |
2mΩ per contact |
|
Temperature Range |
-10°C to 60°C |
|
Humidity |
10%~90%; non condensing |
Applications
- 10Base-T, 100Base-TX, 100Base-T4, 1000Base-T
- ATM-25/ATM-51/ATM-155/100VG-AnyLan
- TR-4/TR-16 Active/TR16 Passive
All the products are verified to the electrical characteristics required in the directive.
Category 5e Shielded Compact Outlet
|
PART NO. |
DESCRIPTION |
PACKING SIZE |
|
111521280 |
Premium Line Category 5e Shielded Compact Outlet, 80×80mm, RAL1013 |
51×29×26.5 cm |
|
111521290 |
Premium Line Category 5e Shielded Compact Outlet, 80×80mm, RAL9010 |
51×29×26.5 cm |

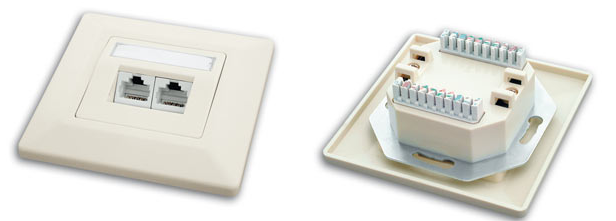

Unshielded Compact Outlet
Premium Line compact outlet is in dedicated design for European market.
With the high electrical performance also the high quality physical material used for inner construction and outside appearance, it provides both easy and reliable field installation also real long time application. And in finished size 80×80mm.
Physical Characteristics
|
Plate |
ABS, UL94 V-0 |
|
Jac |
45° 8P8C RJ45 jack |
|
Plastic housing: engineering thermoplastic |
|
|
IDC |
PC, Dual 8pin IDC |
|
|
IDC Contacts:100μ inch nickel plated over phosphor bronze |
Electrical Characteristics
|
Dielectric Strength |
1000V RMS for 1min |
|
Current Rating |
1.5Amp Max. |
|
Insulation Resistance |
10MΩ Min. |
|
Contact Resistance |
2mΩ per contact |
|
Temperature Range |
-10°C to 60°C |
|
Humidity |
10%~90%; non condensing |
Applications
- 10Base-T, 100Base-TX, 100Base-T4, 1000Base-T
- ATM-25/ATM-51/ATM-155/100VG-AnyLan
- TR-4/TR-16 Active/TR16 Passive
All the products are verified to the electrical characteristics required in the directive.
Category 5e Unshielded Compact Outlet
|
PART NO. |
DESCRIPTION |
PACKING SIZE |
|
111511280 |
Premium Line Category 5e Unshielded Compact Outlet, 80×80mm, RAL1013 |
51×29×26.5 cm |
|
111511290 |
Premium Line Category 5e Unshielded Compact Outlet, 80×80mm, RAL9010 |
51×29×26.5 cm |
