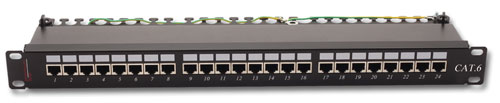

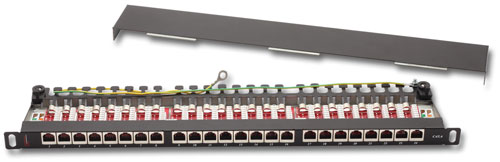

1U Shielded Patch Panel

Premium Line Category 6 shielded Patch panel comply with ANSI/TIA-568-C.2, ISO/IEC 11801 and  EN 50173-1 Class E specifications. The complete module complies with EU ROHS directive.

The construction is in standard 1U 19” size, suits all 19” rack installation. The main metal frame and rear back cover are made of SECC material, with the thickness over 1.0mm. Dual type IDC accepts 22-26 AWG solid cable, easy for termination with 110 or Krone tools. The finished product is available in black or light gray RAL7035 color.



Physical Characteristics

Jack

Phosphor bronze, 50μ inch gold plating over nickel in contact area

IDC

100μ inch nickel plated over phosphor bronze

Shielded Cover

50-60μ inch nickel plated over phosphor bronze



Electrical Characteristics

Dielectric Strength

1000V RMS for 1min

Current Rating

1.5Amp Max.

Insulation Resistance

10MΩ Min.

Contact Resistance

2mΩ per contact

Temperature Range

-10°C to 60°C

Humidity

10%~90%; non condensing



Applications

  • 1000BASE-TX Gigabit Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet.
  • 10BASE-T Ethernet.
  • Voice, Video and other applications.

All the products are verified to the electrical characteristics required in the directive.



Category 6 1U Shielded Patch Panel

PART NO.

DESCRIPTION

PACKING SIZE

176212412

Premium Line Category 6 24port Shielded Patch Panel, Dual Type IDC, Black

50.5×27.9×27 cm

176212419

Premium Line Category 6 24port Shielded Patch Panel, Dual Type IDC, RAL7035

50.5×27.9×27 cm





0.5U Shielded Patch Panel

Premium Line Category 6 0.5U shielded Patch panel comply with ANSI/TIA-568-C.2, ISO/IEC 11801 and EN 50173-1 Class E specifications. The complete module complies with EU ROHS directive. The construction is in standard 19” but in 0.5U size, this is the only difference from Premium Line 1U shielded patch panel on the purpose of rack space saving. The main metal frame and rear back cover made by SECC material, with the thickness over 1.0mm. Dual type IDC accepts 22-26 AWG solid cable, easy for termination with 110 or Krone tools. The finished product available in black or light gray RAL7035 color.



Physical Characteristics

Jack

Phosphor bronze, 50μ inch gold plating over nickel in contact area

IDC

100μ inch nickel plated over phosphor bronze

Shielded Cover

50~60μ inch nickel plated over phosphor bronze



Electrical Characteristics

Dielectric Strength

1000V RMS for 1min

Current Rating

1.5Amp Max.

Insulation Resistance

10MΩ Min.

Contact Resistance

2mΩ per contact

Temperature Range

-10°C to 60°C

Humidity

10%~90%; non condensing



Applications

  • 1000BASE-TX Gigabit Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet.
  • 10BASE-T Ethernet.
  • Voice, Video and other applications.



All the products are verified to the electrical characteristics required in the directive.



Category 6 0.5U Shielded Patch Panel

PART NO.

DESCRIPTION

PACKING SIZE

176272412

Premium Line Category 6 24port Shielded Patch Panel, 0.5U, Dual Type IDC, Black

50.5×27.9×27 cm

176272419

Premium Line Category 6 24port Shielded Patch Panel, 0.5U, Dual Type IDC, RAL7035

50.5×27.9×27 cm



0.5U/24 Port & 1U/48 Port Unshielded Patch Panel

Premium Line Category 6 19” high density patch panel, 24 port in 0,5U and 48 ports in 1U Size, could significantly expand your capacity by space saving in the rack! For any cross-connect rack and HC networking rack in the datacenter or TR, it's the ideal design to achieve more flexible deployment and also anytime available end subscribers' expansion. Two pieces easy click-in cable management bar at the back side is high strength affordable. The compact design saving physical space in rack and combine with its quality headroom margin performance, the panel is your ideal budget saving and competitive solution to others.



Category 6 0.5U Unshielded Patch Panel

PART NO.

DESCRIPTION

PACKING SIZE

176182412

Premium Line Category 6 0.5U UTP Patch Panel with One Cable Management Bar, 24 Ports

50×24×36 cm

176144812

Premium Line Category 6 1U UTP Patch Panel with Two Cable Management Bars, 48 Ports

51.5×24×35 cm



Unshielded Patch Panel

Premium line Category 6 Unshielded Patch Panel comply with ANSI/TIA-568-C.2, ISO/IEC 11801 and EN 50173-1 Class E specifications. The complete module complies with EU ROHS directive. The construction is in standard 1U 19” size, suits for all 19” rack installation. The main metal frame are made of SECC material, with the thickness over 1.0mm. Dual type IDC accepts 22-26 AWG solid cable, easy for termination with 110 or Krone tools. The finished product is available in 24 ports (1U) and 48 ports (2U).



Physical Characteristics

Jack

Phosphor bronze, 50μ inch gold plating over nickel in contact area

IDC

100μ inch nickel plated over phosphor bronze



Electrical Characteristics

Dielectric Strength

1000V RMS for 1min

Current Rating

1.5Amp Max.

Insulation Resistance

10MΩ Min.

Contact Resistance

2mΩ per contact

Temperature Range

-10°C to 60°C

Humidity

10%~90%; non condensing



Applications

  • 1000BASE-TX Gigabit Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet.
  • 10BASE-T Ethernet.
  • Voice, Video and other applications.



All the products are verified to the electrical characteristics required in the directive.



Category 6 1U Shielded Patch Panel

PART NO.

DESCRIPTION

PACKING SIZE

176122412

Premium Line Category 6 24port Unshielded Patch Panel, Dual Type IDC, Black

50×24.5×25.5 cm

176124812

Premium Line Category 6 48port Unshielded Patch Panel, Dual Type IDC, Black

50×24.5×25.5 cm

195000002

Premium Line Cable Management Bar, Click On Type, Black

50.5×27.9×27 cm

195030002

Premium Line Cable Management Bar, Screw Type, Black

50.5×27.9×27 cm





Labeling Holder Panel

Premium line Category 6 Labeling Unshielded Patch Panel comply with TIA/EIA-568C.2, ISO/IEC 11801 and EN 50173-1 Class E specifications. The complete module complies with EU ROHS directive.



Physical Characteristics

Jack

Phosphor bronze, 50μ inch gold plating over nickel in contact area

IDC

100μ inch nickel plated over phosphor bronze



Electrical Characteristics

Dielectric Strength

1000V RMS for 1min

Current Rating

1.5Amp Max.

Insulation Resistance

10MΩ Min.

Contact Resistance

2mΩ per contact

Temperature Range

-10°C to 60°C

Humidity

10%~90%; non condensing



Applications

  • 1000BASE-TX Gigabit Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet.
  • 10BASE-T Ethernet.
  • Voice, Video and other applications.



All the products are verified to the electrical characteristics required in the directive.



Category 6 Labeling Holder Panel

PART NO.

DESCRIPTION

PACKING SIZE

176722412

Premium Line Category 6 24port Unshielded Patch Panel with Labeling Holder, Dual Type IDC,  Black

50×24.5×25.5 cm
