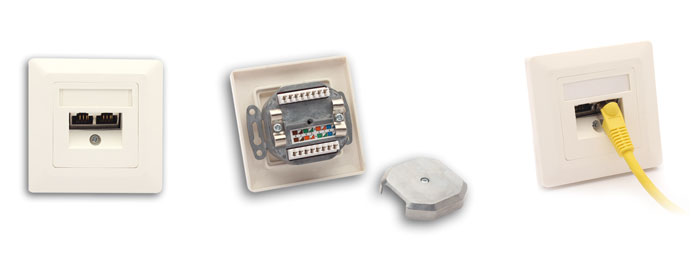

Shielded Compact Outlet

Premium Line compact outlet is in dedicated design for European market.

With the high electrical performance as well as the high quality physical material used for inner construction and outside appearance, it provides both easy and reliable field installation as well as real long time application. And in finished size 80×80mm.



Physical Characteristics

Plate

ABS, UL94 V-0

Top & Bottom Case

Zinc die casting alloys

Jack

Shielded: bronze with nickel plated



Plastic housing: engineering thermoplastic

IDC

Main body: PC, UL94 V-0



IDC Contacts:100μ inch nickel plated over phosphor bronze



Electrical Characteristics

Dielectric Strength

1000V RMS for 1min

Current Rating

1.5Amp Max.

Insulation Resistance

10MΩ Min.

Contact Resistance

2mΩ per contact

Temperature Range

-10°C to 60°C

Humidity

10%~90%; non condensing



Applications

  • 10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, 1000BASE-TX
  • ATM-25/ATM-51/ATM-155/100VG-AnyLan
  • TR-4/TR-16 Active/TR16 Passive



All the products are verified to the electrical characteristics required in the directive.



Category 6 Shielded Compact Outlet

PART NO.

DESCRIPTION

PACKING SIZE

111621280

Premium Line Category 6 Shielded Compact Outlet, 80×80mm, RAL1013

51×29×26.5 cm

111621290

Premium Line Category 6 Shielded Compact Outlet, 80×80mm, RAL9010

51×29×26.5 cm

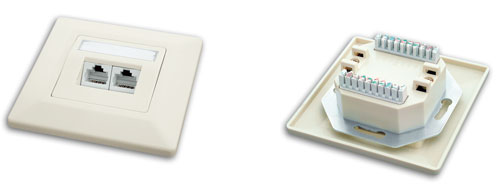

Unshielded Compact Outlet

Premium Line compact outlet is in dedicated design for European market.

With the high electrical performance also the high quality physical material used for inner construction and outside appearance, it provides both easy and reliable field installation also real long time application. And it's finished in size 80×80mm.



Physical Characteristics

Plate

ABS, UL94 V-0

Jack

45° 8P8C RJ45 jack



Plastic housing: engineering thermoplastic

IDC

PC, Dual 8pin IDC



IDC Contacts:100μ inch nickel plated over phosphor bronze



Electrical Characteristics

Dielectric Strength

1000V RMS for 1min

Current Rating

1.5Amp Max.

Insulation Resistance

10MΩ Min.

Contact Resistance

2mΩ per contact

Temperature Range

-10°C to 60°C

Humidity

10%~90%; non condensing



Applications

  • 10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, 1000BASE-TX
  • ATM-25/ATM-51/ATM-155/100VG-AnyLan
  • TR-4/TR-16 Active/TR16 Passive



All the products are verified to the electrical characteristics required in the directive.



Category 6 Unshielded Compact Outlet

PART NO.

DESCRIPTION

PACKING SIZE

111611280

Premium Line Category 6 Unshielded Compact Outlet, 80×80mm, RAL1013

51×29×26.5 cm

111611290

Premium Line Category 6 Unshielded Compact Outlet, 80×80mm, RAL9010

51×29×26.5 cm
