Outdoor Glass Strength Uni-tube Fiber Optic Cable

The optic fibers are positioned in a loose tube made of high modulus plastics. The tube is filled with filling compound to give the fibers excellent water proof performance. The glass yarn between the jacket and loose tube is a strength member and provides rodent resistance. Cable is completed with a polyethylene (PE) jacket.



Structure & Environmental Characteristics

Loose Tube

Material

PBT

Filling Compound

Material

Thixotropic Jelly

Peripheral Strength Member

Material

Glass Yarn

Sheath

 Material

PE / Black

Operating Temperature

-20°C to +60°C

Storage / Transport Temperature

-20°C to +60°C

Installation Temperature

  -5°C to +50°C



Mechanical Characteristics

Fiber Count

Outside (mm)

NominalCable Weight (kg/km)

Crush Resistance
 N/100mm

Tensile Load

Bend Radius

Short Term (N)

Long Term (N)

Static (mm)

Dynamic (mm)

2~12

6.7

55.5

1000

1000

400

10D

20D

14~24

6.7

67

1000

1000

400

10D

20D

Compliant Standard:ITU-T G651 / ITU-T G652 D, ANSI/TIA B.3, IEC-794



Outdoor Glass Strength Uni-tube Fiber Optic Cable, PE

Number of Fibers

9/125

50/125

62.5/125

50/125(OM3)

50/125(OM4)

4

263123004

263133004

263113004

263143004

263193004

6

263123006

263133006

263113006

263143006

263193006

8

263123008

263133008

263113008

263143008

263193008

12

263123012

263133012

263113012

263143012

263193012

24

263123024

263133024

263113024

263143024

263193024

LSOH or PVC sheath upon request



Outdoor Steel Armored Glass Strength Uni-tube Fiber Optic Cable

This kind of fiber optic cable comes additional glass yarn strength member to provide double rodent protection. The compact design suit for duct buried application or conduit installation.

Structure & Environmental Characteristics

Loose Tube

Material

PBT

Filling Compound

Material

Thixotropic Jelly

Peripheral Strength Member

Material

Glass Yarn

Moisture Barrier

Material

Corrugated Steel Tape

Sheath

 Material

PE / Black

Operating Temperature

-20°C to +60°C

Storage / Transport Temperature

-20°C to +60°C

Installation Temperature

  -5°C to +50°C



Mechanical Characteristics

Fiber Count

Outer diameter (mm)

Nominal Cable Weight (kg/km)

Crush Resistance
 N/100mm

Tensile Load

Bend Radius

Short Term (N)

Long Term (N)

Static (mm)

Dynamic (mm)

2~12

9.2

110

1000

1000

400

10D

20D

14~24

9.2

134

1000

1000

400

10D

20D

Compliant Standard:ITU-T G651 / ITU-T G652 D, ANSI/TIA B.3, IEC-794



Outdoor Steel Armored Glass Strength Uni-tube Fiber Optic Cable, PE

Number of Fibers

9/125

50/125

62.5/125

50/125(OM3)

50/125(OM4)

4

265123004

265133004

265113004

265143004

265193004

6

265123006

265133006

265113006

265143006

265193006

8

265123008

265133008

265113008

265143008

265193008

12

265123012

265133012

265113012

265143012

265193012

24

265123024

265133024

265113024

265143024

265193024





Indoor Tight Buffer Distribution Fiber Optic Cable

The 900μm tight buffer fibers are distributed in the center of the cable. The aramid yarn as strength member surround the fibers, provides excellent tensile strength when it’s in installation, the cable is completed with a LSOH jacket.

As the classical premise backbone cabling fiber optic cable, the compact construction is ease for field installation.



Structure & Environmental Characteristics

Tight Buffer

Material

LSOH

Peripheral Strength Member

Material

Aramid Yarn

Sheath

Material

LSOH

Color

Yellow, Orange, Aqua

Operating Temperature

-20°C ~ +60°C

Storage / Transport Temperature

-20°C ~ +60°C

Installation Temperature

-5°C ~ +50°C



Mechanical Characteristics

Fiber Count

Outside Diameter (mm)

Nominal Cable Weight (kg/km)

Crush Resistance N/100mm

Tensile Load

Bend Radius

Short Term (N)

Long Term (N)

Static (mm)

Dynamic (mm)

2

3.2

10

1000

660

200

20D

10D

4

4.8

18

1000



200

20D

10D

6

5.1

22.5

1000

660

200

20D

10D

8

5.6

28

1000

660

200

20D

10D

12

6.2

38

1000

660

200

20D

10D

24

8.2

63

1000

1320

400

20D

10D



Tight Buffer Code

No.

1

2

3

4

5

6

7

8

9

10

11

12

Color

Blue

Orange

Green

Brown

Grey

White

Red

Black

Yellow

Purple

Pink

Aqua

No.

13

14

15

16

17

18

19

20

21

22

23

24

Color

Blue w/Black Tracer

Orange w/Black Tracer

Green w/Black Tracer

Brown w/Black Tracer

Grey w/Black Tracer

White w/Black Tracer

Red w/Black Tracer

Black w/Black Tracer

Yellow w/Black Tracer

Purple w/Black Tracer

Pink w/Black Tracer

Aqua w/Black Tracer



Indoor Tight Buffer Distribution Fiber Optic Cable, LSOH

Number of Fibers

9/125

50/125

62.5/125

50/125(OM3)

50/125(OM4)

4

261322004

261332004

261312004

261342004

261392004

6

261322006

261332006

261312006

261342006

261392006

8

261322008

261332008

261312008

261342008

261392008

12

261322012

261332012

261312012

261342012

261392012

24

261322024

261332024

261312024

261342024

261392024

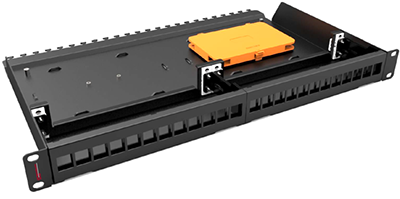

19” Fiber Optic Patch Panel

Premium Line 19” Rack mountable fiber optic patch panel is designed for both patching and splicing, accepts whole range of adapters including SC, ST, FC, LC adapters.  2 * Rear cable entries accommodate cables with diameter below 10mm. Inside splice trays stacked and available for 36 cores (for LC) terminated inside, and cable spools with 35mm bending radius guarantee all modes fiber storage inside with additional low bending loss.  Individual front adapter plate use screws to fix, easy to assemble and exchange. The metal frame is made by cold rolled steel/1.6 mm, and in 1U finished height.



Fiber Optic Patch Panel

PART NO.

DESCRIPTION

241100002

Premium Line Fiber Optic Patch Panel Main Body, Black

242500002

Blank Panel for Fiber Optic Patch Panel, Black

242302082

8port ST Front Panel for Fiber Optic Patch Panel, Black

242301082

8port SC Front Panel for Fiber Optic Patch Panel, Simplex, Black

243000005

Splice Cassette, for 12-port, Grey





Fully Loaded Adapter Plate

Premium Line provides you fully loaded adapter panel, with whole range of fiber adapter types. The changeable adapter plate design makes sure it can be easily and quickly changed. Saving your time, saving your expenses.



Fully Loaded Adapter Plate

PART NO.

DESCRIPTION

242311082

8port SC , Adapter Panel Simplex, MM, Fully Loaded, Black

242321082

8port SC , Adapter Panel Simplex, SM, Fully Loaded, Black

242312082

8port ST , Adapter Panel Simplex, MM, Fully Loaded, Black

242322082

8port ST , Adapter Panel Simplex, SM, Fully Loaded, Black

242414082

8port LC , Adapter Panel Duplex, MM, Fully Loaded, Black

242424082

8port LC , Adapter Panel Duplex, SM, Fully Loaded, Black

242313082

8port FC , Adapter Panel Simplex, MM, Fully Loaded, Black

242323082

8port FC , Adapter Panel Simplex, SM, Fully Loaded, Black





Hybrid Patch Panel

Premium Line Hybrid patch panel is specially designed for flexible deployment for a Data Center cabling, it’s a switchable connection way for copper and fiber. This prodcut for 19” rack installation, 24 ports include copper & fiber. 2 interface plates are easily plug in & extract the interface plate, convenient for connector installation. The inside hexagonal bolt is compact design for fiber cable steel member fixing. The fiber plug to install LC duplex quick port jack recommend to use with Premium Line LC duplex adapter & fiber patch cord. The copper plug to install 180°RJ45 keystone jack, recommend to use with Premium Line keystone jack & patch cord.



Hybrid Patch Panel

PART NO.

DESCRIPTION

PACKING SIZE

248100242

Premium line Copper & Fiber, Hybrid Patch Panel

54x29x39 cm





19” Rack Mounted ODF

Premium Line rack mounted Optic Distribution Frame – ODF suits for standard 19” server cabinet installation. This ODF is available for maximum 96 cores terminated inside with SC or FC connectors & adapters, or 192 cores for LC duplex adapters.

Two simplex adapters stack design make it in easy way for pair coupling distribution in classical fiber network  operations. The front door is removable during installation and easily seal with two plastic lockers.

For the cable storage, management and future deployment, the front adapter panel and splice position are all in rotate design, easy for any operations inside.



19” Rack Mounted ODF

PART NO.

DESCRIPTION

245001965

19” rack mounted ODF, 96cores, w/ splice trays, w/o adapter

245011965

19” rack mounted ODF, 96cores, w/ SC/PC MM simplex adapter loaded

245021965

19” rack mounted ODF, 96cores, w/ SC/PC SM simplex adapter loaded

245014965

19” rack mounted ODF, 96×2 cores, w/ LC/PC MM duplex adapter loaded

245024965

19” rack mounted ODF, 96×2 cores, w/ LC/PC SM duplex adapter loaded

245001485

19” rack mounted ODF, 48cores, w/ splice trays, w/o adapter

245011485

19” rack mounted ODF, 48cores, w/ SC/PC MM simplex adapter loaded

245021485

19” rack mounted ODF, 48cores, w/ SC/PC SM simplex adapter loaded





Wall Mount Box

Premium Line Wall Mount Fiber Optic Box is used for the direct termination of fibers. The rear section accommodates cable entry and protects against taking out the cables. Box includes two separate sections for fusion splice trays and for routing optical connecting modules to the equipment.

The Premium Line four-rack space fiber optic enclosure contains all of the features of the two-rack space model, but with additional capacity to manage fiber counts up to 144. Cable entry/exit feature utilizes a flexible grommet seal, which is cut at time of installation to accommodate the desired cable diameters for entry and exit points. These grommets provide a dust & debris barrier during and after installation.



Wall Mount Box

PART NO.

DESCRIPTION

251011240

Premium Line 24 Port SC Wall Mount Fiber Optic Box without Adapters

251012240

Premium Line 24 Port ST Wall Mount Fiber Optic Box without Adapters

251011480

Premium Line 48 Port SC Wall Mount Fiber Optic Box without Adapters

251012480

Premium Line 48 Port ST Wall Mount Fiber Optic Box without Adapters
