Rack Mounted Wiring Block

Wiring blocks are designed to support voice and high speed data application, which can meet up to Category 5e level data transmission with other equivalent components support. Normally it’s used as cross connect or consolidation point, as it’s the economical solution in a number of different configurations for specific connectivity applications.

Features:

  •  Exclusively deeper channel to facilitate cabling installations
  • Ideal for use in cross connects and consolidation point applications
  • Meets Cat.5e requirements to support high speed data & voice transmission
  • RoHS compliant

Physical Characteristics:

  • Wiring Strips: PC UL94V-0, Color: Ivory
  • Panel: SPCC steel, Color: black
  • Dimension: 19 inch,1U
  • Admissible Conductor: 22~26AWG

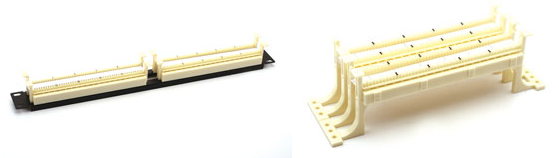

Rack Mounted Wiring Blocks

PART NO. DESCRIPTION Packing Size
271310070 Premium Line 110 Rack Mounted Wiring Blocks, 100 pairs, Ivory 51.1×31.5×32 cm
271320070 Premium Line 110 Rack Mounted Wiring Blocks, 200 pairs, Ivory 51.1×31.5×32 cm
271105070 Premium Line 110 Wiring Blocks with Legs, 50 pairs, Ivory 49.5×39.5×34.5 cm
271110070 Premium Line 110 Wiring Blocks with Legs, 100 pairs, Ivory 49.5×39.5×34.5 cm
271205070 Premium Line 110 Wiring Blocks without Legs, 50 pairs, Ivory 49.5×39.5×34.5 cm
271210070 Premium Line 110 Wiring Blocks without Legs, 100 pairs, Ivory 49.5×39.5×34.5 cm

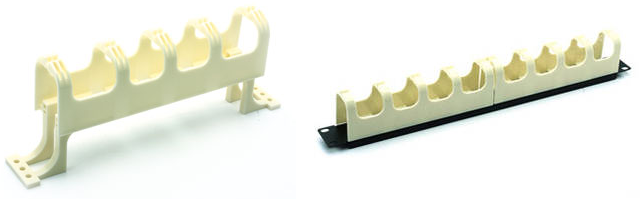

Cable Management

PART NO. DESCRIPTION
272300070 Premium Line 110 Rack Mounted Cable Management, Ivory
272100070 Premium-Line 110 Cable Management with Legs, Ivory
272200070 Premium Line 110 Cable Management without Legs, Ivory

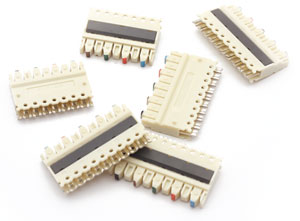

110 Connector

Features:

  • High-quality connecting blocks securely seat the wire on 110 wiring bases.
  • Meets Cat.5e requirements to support high speed data & voice transmission
  • For standard UTP cable.
  • Color printed for easy identification.
  • RoHS compliant.

Construction:

  • Connecting Block: PC UL94V-0, Color: Ivory
  • IDC Contact Material: 100μ inch nickel plated over phosphor bronze
  • Admissible Conductor: 22-26AWG

110 Connector

PART NO.

DESCRIPTION

Packing Size

273500470

Premium Line 110 Wiring Connector, 4 pair, Ivory

48×40×20.5 cm

273500570

Premium Line 110 Wiring Connector, 5 pair, Ivory

48×40×20.5 cm

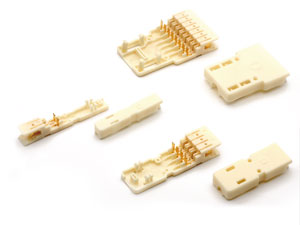

110 Plug

Features:

  • Contains two piece, snap together housing
  • Sturdy, reinforced design to hold up under punch down termination
  • Ergonomically styled for easy handling.
  • Polarized to prevent reverse installation to connector block
  • 4 pair plug terminated with corresponding components meets Cat.5e application
  • RoHS compliant.

Construction:

  • Material: PC, UL94 V-0
  • Contactor: 3μ inch gold plating
  • Admissible Conductor: 22-26AWG

110 Plug

PART NO. DESCRIPTION Packing Size
281100000 Premium Line 110 Patch Plug, 1 pair 48.5×36.1×43.6 cm
281200000 Premium Line 110 Patch Plug, 2 pair 48.5×36.1×43.6 cm
281400000 Premium Line 110 Patch Plug, 4 pair 48.5×36.1×43.6 cm

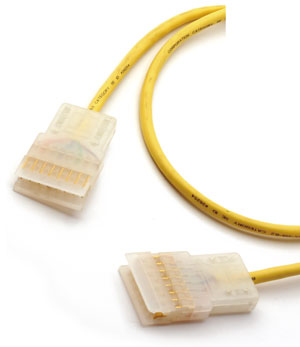

110 Patch Cord

Features:

  • Cable performance conforms to TIA/EIA-568B.2, ISO/IEC 11801 and EN50173
    Category 5E specification, TIA/EIA Bulletin TSB95 for wire Requirements.
  • Comply with standard wiring configuration TIA/EIA568B
  • RoHS compliant.

Construction:

  • 110 Connector:PC UL94 V-0, 3μ-inch gold plating over contact area 1pair, 2 pair, 4 pair upon request
  • Conductor: Bare Copper 26AWG
  • Insulation: HDPE
  • Sheath: PVC or LSOH assorted on request
  • Diameter: 5.3 ± 0.3 mm




110 Patch Cord

LENGTH GREY RED BLUE YELLOW PAIR
1 m 282110105
282210105
282410105
282110103
282210103
282410103
282110104
282210104
282410104
282110108
282210108
282410108
1 Pair
2 Pair
4 Pair
2 m 282110205
282210205
282410205
282110203
282210203
282410203
282110204
282210204
282410204
282110208
282210208
282410208
1 Pair
2 Pair
4 Pair
5 m 282110505
282210505
282410505
282110503
282210503
282410503
282110504
282210504
282410504
282110508
282210508
282410508
1 Pair
2 Pair
4 Pair

Other length, colors, or RJ45 to 110 plug patch cord on request.
