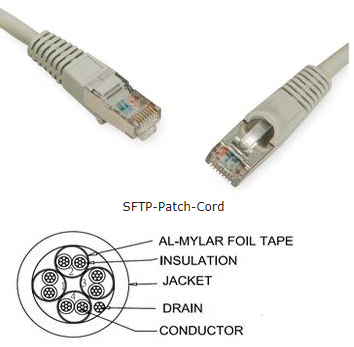

S/FTP Patch Cord. LS0H
Premium Line Category 6A S/FTP patch cord supports whole link achieves Class EA 500MHz 10G Channel Applications. To realize the high performance, the cable is coming two shielding layers. Each pair is wrapping with individual Aluminium-Mylar film, to eliminate the near end pair to pair interferences. Again an aluminium ciated brading laid over the inner structure to provide protection against from outside EMI interferences.
Construction
|
Conductor |
Material / size |
Bare Copper / 26 AWG |
|
|
Insulation |
Material |
Foam-Skin PE |
|
|
Inner-Shield |
Aluminum-Mylar |
an aluminum foil screen around each pair |
|
|
Braid |
Material |
Tinned Copper |
|
|
Sheath |
Material |
PVC/LSOH |
|
|
Diameter |
5.7± 0.3 mm |
||
Category 6A S/FTP Patch Cord, LS0H
|
LENGTH |
GREY |
GREEN |
BLUE |
RED |
YELLOW |
|
0.5m |
182420055 |
182420056 |
182420054 |
182420053 |
182420058 |
|
1m |
182420105 |
182420106 |
182420104 |
182420103 |
182420108 |
|
2m |
182420205 |
182420206 |
182420204 |
182420203 |
182420208 |
|
3m |
182420305 |
182420306 |
182420304 |
182420303 |
182420308 |
|
5m |
182420505 |
182420506 |
182420504 |
182420503 |
182420508 |
|
7m |
182420705 |
182420706 |
182420704 |
182420703 |
182420708 |
|
10m |
182421005 |
182421006 |
182421004 |
182421003 |
182421008 |
Other lengths, colors or PVC cables on request.
U/FTP Patch Cord, LSOH
Compliant with Cat.6A standards as:
- ANSI/TIA 568-C.2:2011
- ISO/IEC 11801 Class EA:2011 (Edition 2.2)
- CENELEC EN 50173-1:2011
- CENELEC EN 50288-4-2:2013
- IEC 61935-2:2010 (Edition 3.0)
- IEC 61156-6:2012
- ETL verified
|
Conductor |
Material / size |
Bare Copper / 26 AWG |
|
|
Insulation |
Material |
Foam-Skin PE |
|
|
Inner-Shield |
Aluminum-Mylar |
an aluminum foil screen around each pair |
|
|
Drain wire |
Material |
Stranded Tinned Copper |
|
|
Sheath |
Material |
PVC |
LSOH |
|
Diameter |
6.0± 0.2 mm |
6.0 ± 0.2 mm |
|
Category 6A U/FTP Patch Cord, LSOH
|
LENGTH |
GREY |
GREEN |
BLUE |
RED |
YELLOW |
|
0,5m |
182820055 |
182820056 |
182820054 |
182820053 |
182820058 |
|
1m |
182820105 |
182820106 |
182820104 |
182820103 |
182820108 |
|
2m |
182820205 |
182820206 |
182820204 |
182820203 |
182820208 |
|
3m |
182820305 |
182820306 |
182820304 |
182820303 |
182820308 |
|
5m |
182820505 |
182820506 |
182820504 |
182820503 |
182820508 |
|
7m |
182820705 |
182820706 |
182820704 |
182820703 |
182820708 |
|
10m |
182821005 |
182821006 |
182821004 |
182821003 |
182821008 |
Other lengths, colors or PVC cables on request
U/UTP Patch Cord, PVC
Premium Line Category 6A U/UTP patch cord supports the whole channel transmission as per standard TIA/EIA-568C.2, ISO/IEC 11801 and EN 50173-1 Class EA specifications. The 24 AWG stranded conductor and flexible construction easy for bending or change. Normally, the patch cord will be in TIA 568B wiring, TIA 568A or other wiring method upon request. The patch cord is finished with snag proof boot.
Construction
|
Conductor |
Material / size |
Bare Copper / 24 AWG |
|
|
Insulation |
Material |
HDPE |
|
|
Sheath |
Material |
PVC/LSOH |
|
|
Diameter |
7.5 ± 0.3 mm |
||
Category 6A U/UTP Patch Cord, PVC
|
LENGTH |
GREY |
GREEN |
BLUE |
RED |
Yellow |
|
0.5m |
182110055 |
182110056 |
182110054 |
182110053 |
182110058 |
|
1m |
182110105 |
182110106 |
182110104 |
182110103 |
182110108 |
|
2m |
182110205 |
182110206 |
182110204 |
182110203 |
182110208 |
|
3m |
182110305 |
182110306 |
182110304 |
182110303 |
182110308 |
|
5m |
182110505 |
182110506 |
182110504 |
182110503 |
182110508 |
|
7m |
182110705 |
182110706 |
182110704 |
182110703 |
182110708 |
|
10m |
182111005 |
182111006 |
182111004 |
182111003 |
182111008 |
Other lengths, colors or halogen free cables on request.
