Category 6A+ S/FTP Patch Cord Component Level Type
Premium Line Category 6A+ S/FTP patch cord component level type supports whole link achieves Class EA 500MHz 10G channel applications, as per standard ANSI/TIA 568-C.2, ISO/IEC 11801 Class EA, EN 50173-1, EN 50288-4-2, IEC61935-2, IEC 61156-6. The cable realize high performance, could pass Fluke ISO 11801 Cat.6A Patch Cord test up to 20m.

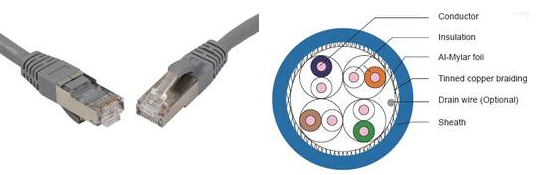

Construction
| Conductor | Material / size Construction |
Bare Copper / 26AWG 7/0.16 ± 0.005 mm |
|
| Insulation | Material | Foam-Skin PE | |
| Inner-Shield | Aluminum-Mylar | An Aluminum Foil Screen Around Each Pair | |
| Braid | Material | Tinned Copper | |
| Sheath | Material | PVC/LSOH | |
| Diameter | 5.7± 0.3 mm | ||
Category 6A+ S/FTP Patch Cord Component Level Type, LSOH
| LENGTH | GREY | GREEN | BLUE | RED | Yellow |
| 0.5m | 189420055 | 189420056 | 189420054 | 189420053 | 189420058 |
| 1m | 189420105 | 189420106 | 189420104 | 189420103 | 189420108 |
| 2m | 189420205 | 189420206 | 189420204 | 189420203 | 189420208 |
| 3m | 189420305 | 189420306 | 189420304 | 189420303 | 189420308 |
| 5m | 189420505 | 189420506 | 189420504 | 189420503 | 189420508 |
| 7m | 189420705 | 189420706 | 189420704 | 189420703 | 189420708 |
| 10m | 189421005 | 189421006 | 189421004 | 189421003 | 189421008 |
Other lengs, colors or PVC cables on request
